B3 Sport Suspension Kit - BMW 3 Series F30 & F31 340i 335i, 335ix, 335dx
Birds' B-Series Sport Suspension Kits for the BMW 335i, 335ix, and 335dx consist of specially valved Bilstein shock absorbers and matched springs designed by Birds to offer the ultimate improvement in BMW ride quality and handling on the UK's diverse road surfaces.
The art of ride and handling
"Anyone considering a 340i must buy this upgrade as well, it's as simple as that."
The problem with the standard car.
The F30 comes as standard with Drive Performance Control which provides a range of driving modes from Eco Pro through to Sport+. It can also be specified with with electronically controlled adaptive M Sport dampers.
The problem with the standard car is both the front to rear springs stiffness balance and the damping performance available from both the adaptive and standard shock absorbers. There are also issues with the weight balance of the car. BMW’s obsession with “near 50/50 weight distribution” has led to heavy items such as fuel tanks and batteries being placed rearwards, often behind the rear axle centreline. What this achieves, under hard acceleration, is a significantly rear-heavy weight balance. One motor manufacturer has been battling the problems caused by excessive rear axle weight for over 50 years. Futhermore, if the rear tyres are pushed beyond the grip limit, this can cause the rear end to act like a pendulum. With an excessive rear end spring stiffness, the sudden break-away can be quite difficult to catch.
On the damping side, the more expensive adaptive dampers are designed to give the driver the option of how stiffly damped he wants the car to be at any given time. The Comfort mode gives soft damping all the way from slow speeds upwards. Most drivers are fishing for the “Sport button” just as soon as speeds increase beyond 60mph. Unfortunately, this immediately re-engages the traction control, so those cars not blessed with a mechanical limited-slip differential are immediately robbed of the additional control over the rear end and power delivery that these essential devices allow.
Even so, at higher speeds, the dampers run out of talent, and the car starts to get floaty, generating a loss of confidence of the driver. You will find your right foot being automatically pulled away from the throttle…
Oddly, we believe that the standard dampers give a better account of themselves, especially al low and medium speeds, but they are cheaply made, and like the Adaptive Dampers have pretty much linear damping force curves measured against damper speed.
Kevin Bird on the B-Series Sport development...
"Once in a while, it's good to completely reset your expectations. if you don't you could remain entrenched, and not find the imagination to push the boundaries further. Since we started developing suspensions, we have already created some incredibly fine-handling and riding BMW cars. Our E92 3 series and E87/8 1 series chassis set-ups have received huge praise from the press and customers alike. We really didn't think we could improve matters very much.
With the M135i, we utilised the data from the previous developments and recalculated according to the different characteristics of this similar chassis. The results were exactly as expected, although it took many attempts to iron out some issues not experienced in the previous chassis. Again, both press and customers found complete satisfaction in the results."

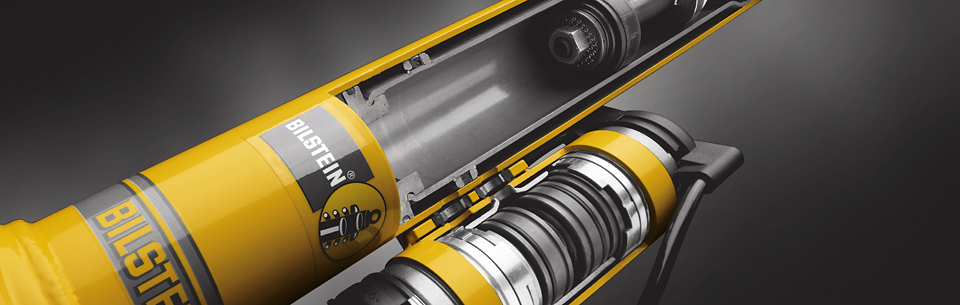

Bilstein shock absorbers are specially valved to Birds' formula
"Then, during a charity event track day, I was re-acquainted with James Weaver, the legendary Sports Car driver, who I first met way back in the late 1980s. He had a few comments to make about our Z4 35i which he was piloting, and some of them not altogether complimentary. He suggested that we contacted his chassis engineer friend and long-time work colleague, Peter Weston.
So when our M235i demonstrator arrived, we set about adapting the M135i suspension configuration and installed it on the car. Results were as expected, but we then contacted Peter to see if there were any opportunities to make this even better. He requested that we give him measurement data from the car. I was astonished at the level of detail he required. Not only things like arm ratios, corner-weights, spring stiffness, damper rates and so on, but stuff that we'd never even started to consider, like un-sprung weights of each corner, centre of gravity above front and rear axles, bump stop stiffness and contact points etc. etc. The measuring work alone took us two full days.
A few days later, he came back to us with two new spring and damper settings. We had Bilstein re-valve a set of dampers to Peters' "revision A" spec, installed them on the car, then he and James visited to test in early January. The weather was cold and damp, but nevertheless, after much fiddling with tyre pressures, front and rear geometry and different wheel and tyre sets, a conclusion was reached. There was no doubt that the car was behaving much better than our own calculated confection, but it was suggested that even more could be achieved in terms of ride quality and especially traction and grip levels with a 2nd "revision B".
This included changes to spring rates both front and rear, and damper curves to suit. Moreover, changes to the front track width (to generate less negative scrub radius)and, surprisingly, a different choice of tyre. Some 3 weeks passed whilst the revisions were manufactured and installed on the car.
Although the changes seemed relatively minor to us, and left us wondering whether we would make miniscule gains at significant expense, the results were a revelation. Not only was the ride quality better than before, ultimate body control improved on our bumpy B roads, the steering feel improvements was in a different league.
And the traction and grip levels? Simply unbelievable. Given the temperatures and conditions, we never expected to be able to assess that characteristic, but its blindingly obvious that where we had so little before, now we have it everywhere.
This is without doubt the best suspension tune we have achieved so far.
So going back to the beginning, our expectations have been reset. The expectation being that a combination of revised spring rates, damper settings and anti-roll bars to a previously proven formula are enough to achieve the best possible result. No, the best possible result can only be achieved by continuing to accept that there is always room for improvement, and some of those gains may well be beyond ones' reasonable expectations. You cannot find without looking."
Call us at Birds to arrange your demonstration on 01753 657 444.
